Bloc alimentation 60W 12 ou 24Vcc IP67

RATED VOLTAGE 12V ou 24V
RATED CURRENT 5A ou 2.5A
CURRENT RANGE 0 ÷ 5A  0 ÷ 2.5A
RATED POWER 60W
LINE REGULATION ± 1%
LOAD REGULATION ± 3% ± 2%
TOLERANCE [3] ± 5%
RIPPLE & NOISE (max.) [2] 200mVP-P(12v) 300mVP(24v)
SETUP, RISE TIME [4] 1500ms, 800ms / 230VAC; 2500ms, 800ms / 230VAC at full load
HOLD UP TIME 24ms / 115VAC, 50ms / 230VAC at full load
INPUT
VOLTAGE RANGE 90 ÷ 264VAC; 127 ÷ 370VDC
FREQUENCY RANGE 47 ÷ 63Hz
EFFICIENCY (typ.) 81% 82% 83% 84% 85%
AC CURRENT (typ.) 1.4A/115VAC, 0.7A / 230VAC
INRUSH CURRENT (typ.) 70A / 230VAC, 35A / 115VAC
LEAKAGE CURRENT (max.) 0.25mA / 240VAC
PROTECTIONS
OVER CURRENT
Range: 150 ÷ 200% rated current
Type: hiccup mode, auto-recovery.
SHORT CIRCUIT Type: hiccup mode, auto-recovery.
OVER VOLTAGE
8 ÷ 11.5V 13.5 ÷ 18.5V 20 ÷ 24V 27 ÷ 33V 45 ÷ 54V
Type: hiccup mode, auto-recovery.

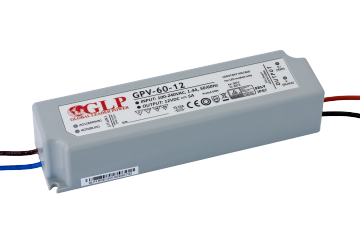

GPV-60 series
60W Single Output Switching Power Supply
GP V - 6 0 - s p e c - EN 3 1 . 0 7. 2 0 1 5
■ Features:
• Constant voltage design
• Universal AC input / Full range
• Protections: Short circuit / Over current / Over voltage
• Cooling by free air convection
• Isolation class II
• Class 2 power unit
• Fully encapsulated with IP67 level [5]
WORKING ENVIRONMENT
WORKING TEMPERATURE -30°C ÷ 70°C (Refer to Derating Curve)
WORKING HUMIDITY 20 ÷ 9,% RH non-condensing
STORAGE TEMPERATURE AND HUMIDITY -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
TEMPERATURE COEFFICIENT ± 0.03% / °C (0°C ÷ 50°C)
VIBRATION 10 ÷ 500Hz, 2G, 10min / cycle, period for 60min. each along X, Y, Z axes
SAFETY AND EMC REGULATIONS
SAFETY STANDARDS Compliance to EN61347-1, EN61347-2-13, IP67
WITHSTAND VOLTAGE I-P/O-P: 3kVAC
ISOLATION RESISTANCE I-P/O-P: 100MΩ/500VDC/25°C/70%
EMC EMISSION Compliance to EN55015
EMC IMMUNITY Compliance to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
HARMONIC CURRENT Compliance to EN61000-3-3; EN61000-3-2
OTHERS
DIMENSIONS 162 x 42 x 33mm (L x W x H)
