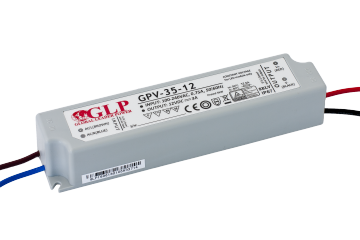

Bloc alimentation 35W 12 ou 24Vcc IP67

RATED VOLTAGE 12V ou 24V
RATED CURRENT 3A ou 1.5A
CURRENT RANGE 0 ÷ 3A 0 ÷ 1.5A
RATED POWER 36W
LINE REGULATION ± 1%
LOAD REGULATION ± 2%
TOLERANCE [3] ± 3%
RIPPLE & NOISE (max.) [2] 100mVP-P(12v) -P 200mVP-P(24v)
SETUP, RISE TIME [4] 3000ms, 250ms / 115VAC; 5000ms, 250ms / 230VAC at full load
HOLD UP TIME 20ms / 230VAC, 24ms / 115VAC at full load
INPUT
VOLTAGE RANGE 90 ÷ 264VAC; 127 ÷ 370VDC
FREQUENCY RANGE 47 ÷ 63Hz
EFFICIENCY (typ.) 75% 82% 82% 84% 85%
AC CURRENT (typ.) 0.6A/115VAC,
0.3A / 230VAC 0.75A/115VAC, 0.35A / 230VAC
INRUSH CURRENT (typ.) 70A / 230VAC, 35A / 115VAC
LEAKAGE CURRENT (max.) 0.25mA / 240VAC
PROTECTIONS
OVER CURRENT
Range: 105 ÷ 150% rated current
Type: hiccup mode, auto-recovery.
SHORT CIRCUIT Type: hiccup mode, auto-recovery.
OVER VOLTAGE
5.5 ÷ 8V 13.1 ÷ 19.2V 16.5 ÷ 24V 26.4 ÷ 38.4V 39.6 ÷ 57.4V
Type: shut-off, auto-recovery. Type: hiccup mode, auto-recovery.
1/2
GPV-35 series
35W Single Output Switching Power Supply
GP V - 3 5 - s p e c - EN- R 4 2 3 . 0 3 . 2 0 1 6
■ Features:
• Constant voltage design
• Universal AC input / Full range
• Protections: Short circuit / Over current / Over voltage
• Cooling by free air convection
• Isolation class II
• Class 2 power unit
• Fully encapsulated with IP67 level [5]
WORKING ENVIRONMENT
WORKING TEMPERATURE -20°C ÷ 70°C (Refer to Derating Curve)
WORKING HUMIDITY 20 ÷ 90% RH non-condensing
STORAGE TEMPERATURE AND HUMIDITY -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
TEMPERATURE COEFFICIENT ± 0.03% / °C (0°C ÷ 50°C)
VIBRATION 10 ÷ 500Hz, 2G, 10min / cycle, period for 60min. each along X, Y, Z axes
SAFETY AND EMC REGULATIONS
SAFETY STANDARDS Compliance to EN61347-1, EN61347-2-13, IP67
WITHSTAND VOLTAGE I-P/O-P: 3kVAC
ISOLATION RESISTANCE I-P/O-P: 100MΩ/500VDC/25°C/70%
EMC EMISSION Compliance to EN55015
EMC IMMUNITY Compliance to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
HARMONIC CURRENT Compliance to EN61000-3-3; EN61000-3-2
OTHERS
DIMENSIONS 148 x 32 x 28mm (L x W x H)
