Bloc alimentation 12W 12 ou 24Vc IP67

Rated Voltage 12V ou 24V
Rated Current 1A ou 0.5A
Current Range 0 ÷ 1A 0 ÷ 0.5A
Rated Power 12W
Line Regulation ± 1%
Load Regulation ± 2%
Tolerance [3] ± 5%
Ripple & Noise (max.) [2] 120mVP-P 120mVP-P
Setup, Rise Time [4] 500ms, 20ms / 230VAC at full load
Hold up Time (typ.) 20ms / 230VAC at full load
INPUT
Voltage Range 90 ÷ 264VAC; 127 ÷ 370VDC
Frequency Range 47 ÷ 63Hz
Efiiciency (typ.) 76% 79%
AC Current (typ.) 0.29A / 115VAC, 0.14A / 230VAC
Inrush Current (typ.) 6A / 230VAC; TWIDTH (50% peak) = 230μs
Max. No. Of PSU on Circuit Breaker
B10 B16 C10 C16 D10 D16
42 68 56 90 64 100
Leakage Current (max.) 0.25mA / 240VAC
1/3
GPV-12 series

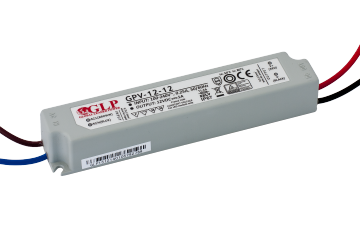

12W Constant Voltage LED Power Supply

■ Features:
• Constant voltage design
• Universal AC input range
• Protections: Overload / Over voltage / Short circuit / Over Temperature
• Cooling by free air convection
• Isolation class II
• TUV certificate
• IP67 Protection level [5]
Regular Production
Surveillance
Type Approved
Safety
www.tuv.com
ID 2000000000
Rheinland
CERTIFIED
TÜV
R tc: 80°C
ta: 50°C
PROTECTIONS
Overload
Range: 110-160% rated power
Type: hiccup mode, auto-recovery.
Short Circuit Type: hiccup mode, auto-recovery.
Over Voltage
Range: 13-20V Range: 25-36V
Type: hiccup mode, auto-recovery.
Over Temperature
140°C±10°C(detect on main control IC)
Type: shut-off, auto-recovery.
WORKING ENVIRONMENT
Working Temperature -30°C ÷ 70°C (refer to Derating Curve), ta: 50°C; tc: 80°C
Working Humidity 20 ÷ 90% RH non-condensing
Storage Temperature and Humidity -30°C ÷ 80°C, 10 ÷ 95% RH non-condensing
SAFETY and EMC REGULATIONS
Safety Standards Compliance to TUV EN 61347-1, TUV EN 61347-2-13, IP67
Withstand Voltage IN/OUT: 3kVAC
Isolation Resistance IN/OUT: 100MΩ/500VDC/25°C/70%
EMC Emission Compliance to EN55015
EMC Immunity Compliance to EN61547
Harmonic Current Compliance to EN61000-3-3; EN61000-3-2
OTHERS
Lifetime 50 000 hours at 230VAC input, ambient temperatury 25°C, full load
Dimensions 130 x 25 x 21.5mm (L x W x H)
