Bloc alimentation 30W 12 ou 24Vcc Slim Line

RATED VOLTAGE 12V ou 24V
RATED CURRENT 2.5A(12V) ou 1.25A(24V)
POWER RANGE 1 ÷ 30W
RATED POWER 30W
LINE REGULATION ± 1%
LOAD REGULATION ± 1%
VOLTAGE TOLERANCE [3] ± 5%
RIPPLE & NOISE (max.) [2] 240mVP-P 480mVP-P
SETUP 1000ms
INPUT
VOLTAGE RANGE 180 ÷ 264VAC
FREQUENCY RANGE 47 ÷ 63Hz
POWER FACTOR (typ.) PF > 0.9 / 230VAC at full load
EFFICIENT (typ.) 85% 85%
AC CURRENT (typ.) 0.5A / 230VAC
INRUSH CURRENT (max.) 60A / 230VAC(25°C)
PROTECTIONS
OVERLOAD
Range: 110 ÷ 160% rated current
Type: hiccup mode, auto-recovery.
SHORT CIRCUIT Type: hiccup mode, auto-recovery.
OVER VOLTAGE
18-21V 16-42V
Type: shut off output voltage. Re-power on to recovery.
OVER TEMPERATURE
Range: 110°C ± 5°C
Type: shut off output voltage. Re-power on to recovery.

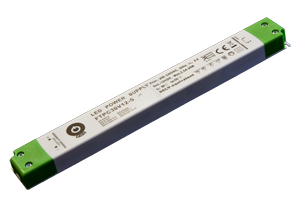

FTPC30V-S series
30W Constant Voltage LED Power Supply

■ Features:
• European AC Input
• Protections: Short circuit / Over load / Over voltage / Temperature
• Cooling by free air convection
• Built-in active PFC function
• Isolation class II
• Extremely short and slim case sizeWORKING TEMPERATURE -20°C ÷ 50°C

WORKING HUMIDITY 20 ÷ 98% RH non-condensing
STORAGE TEMPERATURE AND HUMIDITY -30°C ÷ 70°C, 10 ÷ 98% RH non-condensing
TEMPERATURE COEFFICIENT ± 0.05% / °C (-20°C ÷ 45°C)
VIBRATION 10 ÷ 500Hz, 2G, 10min / cycle, period for 30min. each along X, Y, Z axes
SAFETY & EMC REGULATIONS
SFAETY STANDARDS Compliance to EN61347-1, EN61347-2-13
WITHSTAND VOLTAGE I-P/O-P: 3.75kVAC/1min
ISOLATION RESISTANCE I-P/O-P: 50MΩ/500VDC/25°C/70%
EMC EMISSION Compliance to EN55015
EMC IMMUNITY Compliande to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
HARMONIC CURRENT Compliance to EN61000-3-3; EN61000-3-2 class C(100% load)

DIMENSIONS 251 x 30 x 16mm (L x W x H)
